Note: The fingertip link can be detached from the finger by removing just three (3) M2x0.4mm hex screws. The silicone fingertip is detached from this link by removing two (2) M2x0.4mm hex screws.

Fingertip Dimensions

Note: All dimensions shown below are in millimeters unless otherwise stated.

Fingertip link dimensions.jpg


Fingertip link dimensions thumb.jpg

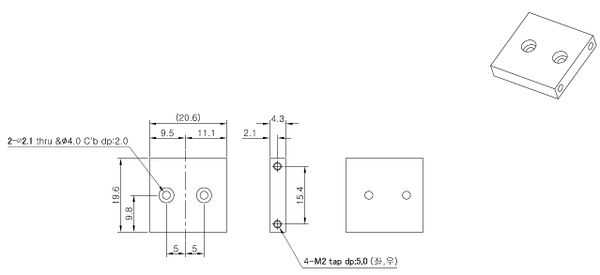

Fingertip Block Dimensions b.jpg





Joint Block 3.jpg

Assembly

Screws are M2x0.4mm - 8mm long

Fingertip Exploded.jpg
